Popis

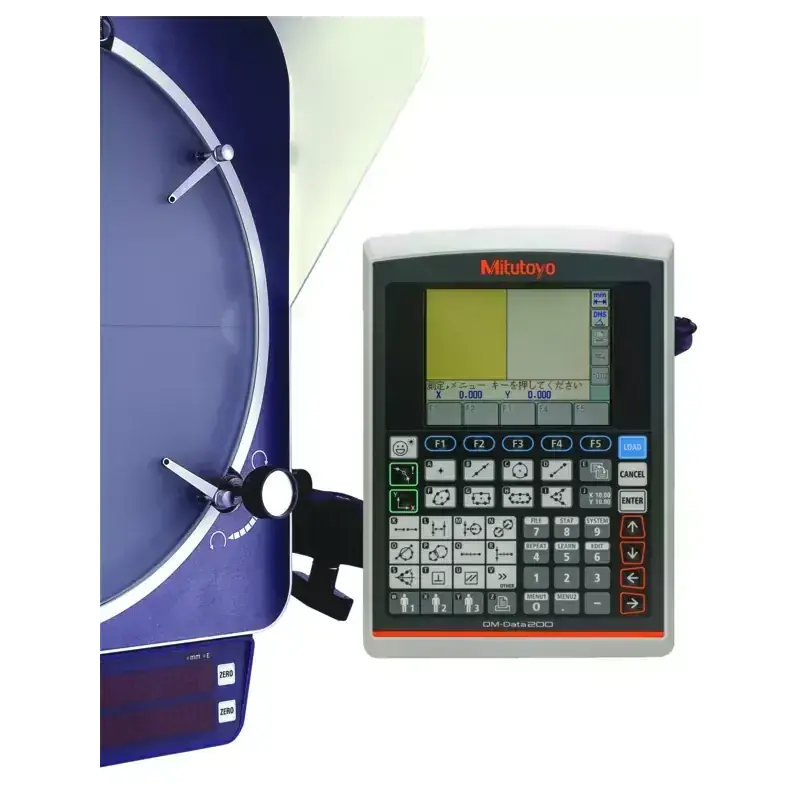

The Data Processing Unit QM-Data 200 has been especially designed to process measurement
data generated by a profile projector or measuring microscope.
The QM-Data 200 offers you the following benefits:
- Measuring instructions, measuring values and calculation results for various operations are shown on the back-lit LCD in a clear, easy to understand style.
- You can also print measuring results, either on a small and convenient thermal printer
(available as a special option) or on an ESC/P printer and continuous paper.
Parametry
| Napájení | 100/240V AC, 50/60 Hz |
| Hmotnost [kg] | 2.8 |
| Vstup dat | USB, RS-232C, X/Y/Z-axis signal, Footswitch |
| Výstup dat | USB, RS-232C, Printer |
| Rozlišení [mm] | 1 / 0,1 µm |
| Measuring ofGeometric Elements | Maximum of 1000 elements, point, line, circle, distance, ellipse, rectangular hole, slotted hole, intersection and intersecting angle and point & angle, plus a number of functions for evaluation, e.g. perpendicularity and parallelism are provided. |
| Measurement resultfile output | CSV format, MUX-10F format |
